Flake Ice Machines & Flake Ice Evaporators

Used for vast majority of applications in Food Processing, Fisheries, Super Markets, Chemical Manufacturing, Leisure & Sports Facilities. Our SNOWKEY flake ice machine is a go-to customer choice due to SNOWKEY vast experience in all different type of ice evaporators, ice manufacturing systems, its delivery and storage systems.

Our SNOWKEY Flake Ice evaporators are developed on robust design with Ice formed inside a stationary evaporator drum and internal screw to scrape the ice flakes. Internal water recirculation system ensuring no water or thermal energy leakages. Extremely large heat exchange surface area, low refrigerant approach temperatures ensure peak efficiency while quality is ensuring by following and complying all international standards

Flake Ice Machines & Flake Ice Evaporators

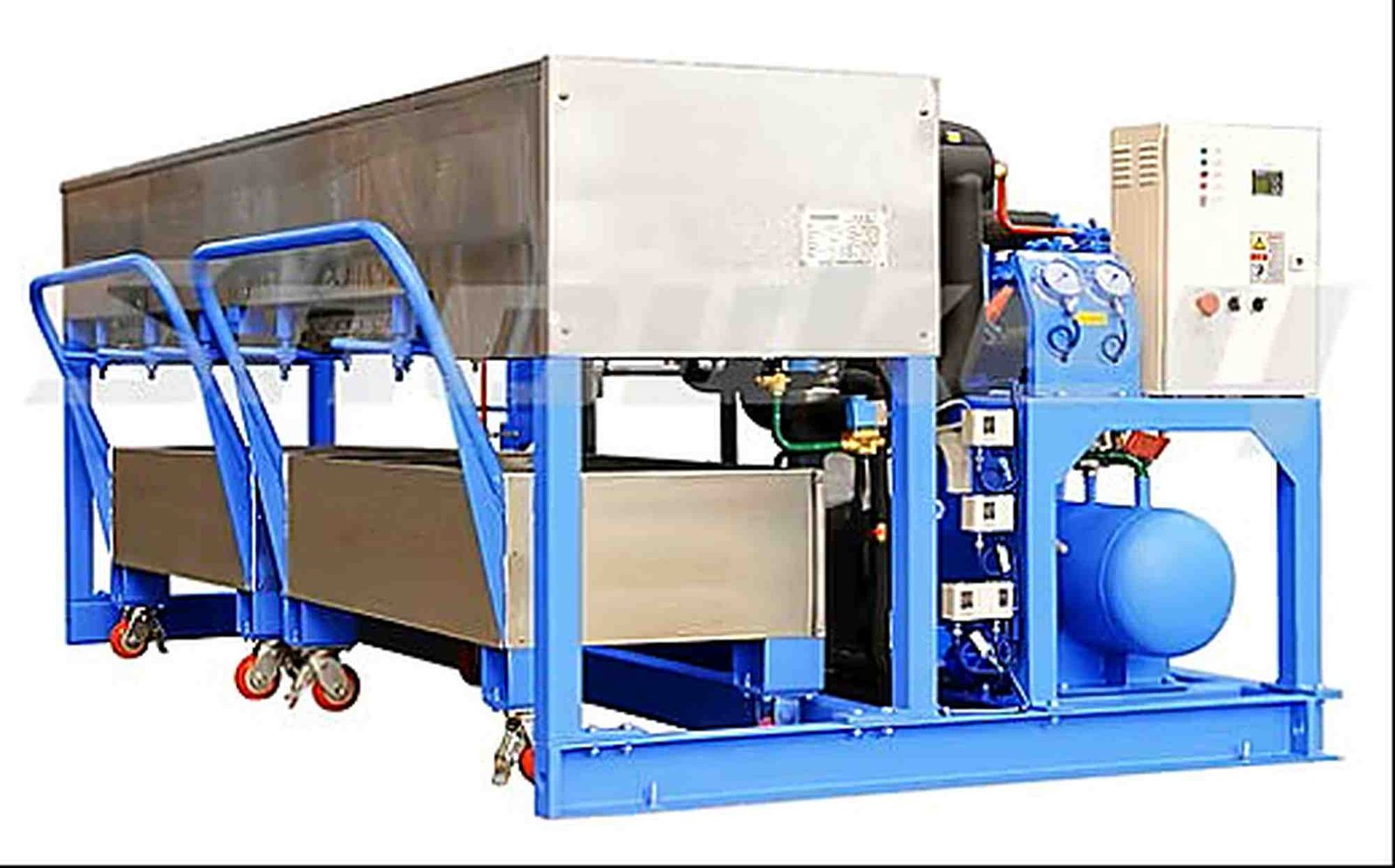

Used for a wide range of applications in Fisheries, Aquatic Product Preservation, Food Processing, Industrial Cooling, and Ice Sculpture. Our SNOWKEY Block Ice Machine is a trusted solution due to SNOWKEY’s expertise in ice manufacturing systems, ice evaporators, delivery and storage systems. Block Ice Machines are highly efficient, durable, and produce large solid blocks of ice suitable for various industrial and commercial requirements. Our SNOWKEY Block Ice evaporators utilize a direct refrigeration system with specially designed molds to form ice blocks. Harvesting is accomplished by hot gas defrost, ensuring rapid and complete ice release. Optimized circulation design ensures stable operation, energy efficiency, and compliance with international quality and hygiene standards

Block Ice Machines are executed around robust and efficient SNOWKEY Block Ice Evaporators. Models are available in a wide range of capacities from 1 TPD up to 100+ TPD with options for different block sizes.

AIR COOLED BLOCK ICE MACHINES
WATER COOLED BLOCK ICE MACHINES
EVAPORATIVE COOLED BLOCK ICE MACHINES

Model	Design Capacity	Refrigeration Capacity	Evaporating Temp	Reducer Power	Circulating Pump Power	Compressor	Net Weight	Dimension (L×W×H)(mm)
F050	500 kg/day	2374 kCal	-20°C	0.18 kW	0.014 kW	3HP	200 kg	1200×735×639
F075	750 kg/day	3560 kCal	-20°C	0.18 kW	0.014 kW	4HP	228 kg	1200×735×684
F10	1000 kg/day	4747 kCal	-20°C	0.18 kW	0.014 kW	4HP	242 kg	1200×735×825
F12	1200 kg/day	5696 kCal	-22°C	0.18 kW	0.014 kW	5HP	256 kg	1410×955×825
F16	1600 kg/day	7595 kCal	-22°C	0.37 kW	0.025 kW	5HP	378 kg	1490×1180×934
F20	2000 kg/day	9494 kCal	-22°C	0.37 kW	0.025 kW	6HP	418 kg	1490×1180×1009
F25	2500 kg/day	11868 kCal	-22°C	0.37 kW	0.025 kW	8HP	398 kg	1490×1180×1069
F30	3000 kg/day	14241 kCal	-22°C	0.37 kW	0.025 kW	12HP	1022 kg	2000×1650×1382
F40	4000 kg/day	18989 kCal	-22°C	0.37 kW	0.025 kW	20HP	1117 kg	2100×1700×1382
F50	5000 kg/day	23735 kCal	-22°C	0.37 kW	0.125 kW	25HP	1168 kg	2350×1675×1471
F60	6000 kg/day	28482 kCal	-22°C	0.37 kW	0.125 kW	30HP	1168 kg	2350×1675×1471
F80	8000 kg/day	37976 kCal	-22°C	0.55 kW	0.25 kW	40HP	1506 kg	2600×1740×1851
F100	10000 kg/day	47470 kCal	-22°C	0.75 kW	0.25 kW	50HP	1742 kg	3267×1950×2006
F150	15000 kg/day	71205 kCal	-23°C	0.75 kW	0.4 kW	60HP	3200 kg	3350×1750×2260
F200	20000 kg/day	94940 kCal	-23°C	1.1 kW	0.4 kW	75HP	5200 kg	3500×2100×2954
F250	25000 kg/day	118675 kCal	-24°C	1.1 kW	0.75 kW	100HP	7000 kg	4500×2050×3137
F300	30000 kg/day	142410 kCal	-25°C	1.1 kW	0.75 kW	120HP	7500 kg	4500×2050×3277
F350	35000 kg/day	166145 kCal	-25°C	1.5 kW	0.75 kW	150HP	9600 kg	5200×2360×3331
F400	40000 kg/day	189880 kCal	-25°C	1.5 kW	0.75 kW	210HP	11000 kg	5500×2360×3661
F600	60000 kg/day	284820 kCal	-25°C	1.5 kW	0.75 kW	280HP	14000 kg	6400×2360×4307

Why Choose Snowkey Ice Machines

Flake Ice Features:

Flake-Ice formed at -8⁰C
Clean, dry, without acute edges and corners ice formation
Ice thickness of 1.5 ~ 2.2 mm

Flake Ice Machine Features:

Designed on rugged and more durable stationary evaporator technology
Evaporators are designed and tested according to ASME and PED standards
Ice machines with options of Air Cooled, Water Cooled or Evaporative Cooled as required
Ice machines designed according to ambient conditions of end-use location, ensuring rated performance
Ice machines, with our own SRMtec or REFCOMP durable compressors
Ice machines come with PLC-based automatic control panel for complete auto operation and safety control
Unit comes with all electrical, mechanical, and refrigerant safety controls from compressor, evaporator, and refrigeration system

Service & Product Support:

Please check our product service & product support page

Use Case

Food Processing Industry
Beverage, Juice & Brewery Industry
Bakery & Confessionary Industry
Dairy & Ice-cream Industry
Fish, Meat, Poultry Processing
Cold Stores & CA Stores
Ice Blocks & Ice Manufacturing

Interested?

Get a Quote

Flake Ice Machines & Flake Ice Evaporators

Interested?

Get a Quote

AIR COOLED BLOCK ICE MACHINES
WATER COOLED BLOCK ICE MACHINES
EVAPORATIVE COOLED BLOCK ICE MACHINES

Model	Design Capacity	Refrigeration Capacity	Evaporating Temp	Reducer Power	Circulating Pump Power	Compressor	Net Weight	Dimension (L×W×H)(mm)
F050	500 kg/day	2374 kCal	-20°C	0.18 kW	0.014 kW	3HP	200 kg	1200×735×639
F075	750 kg/day	3560 kCal	-20°C	0.18 kW	0.014 kW	4HP	228 kg	1200×735×684
F10	1000 kg/day	4747 kCal	-20°C	0.18 kW	0.014 kW	4HP	242 kg	1200×735×825
F12	1200 kg/day	5696 kCal	-22°C	0.18 kW	0.014 kW	5HP	256 kg	1410×955×825
F16	1600 kg/day	7595 kCal	-22°C	0.37 kW	0.025 kW	5HP	378 kg	1490×1180×934
F20	2000 kg/day	9494 kCal	-22°C	0.37 kW	0.025 kW	6HP	418 kg	1490×1180×1009
F25	2500 kg/day	11868 kCal	-22°C	0.37 kW	0.025 kW	8HP	398 kg	1490×1180×1069
F30	3000 kg/day	14241 kCal	-22°C	0.37 kW	0.025 kW	12HP	1022 kg	2000×1650×1382
F40	4000 kg/day	18989 kCal	-22°C	0.37 kW	0.025 kW	20HP	1117 kg	2100×1700×1382
F50	5000 kg/day	23735 kCal	-22°C	0.37 kW	0.125 kW	25HP	1168 kg	2350×1675×1471
F60	6000 kg/day	28482 kCal	-22°C	0.37 kW	0.125 kW	30HP	1168 kg	2350×1675×1471
F80	8000 kg/day	37976 kCal	-22°C	0.55 kW	0.25 kW	40HP	1506 kg	2600×1740×1851
F100	10000 kg/day	47470 kCal	-22°C	0.75 kW	0.25 kW	50HP	1742 kg	3267×1950×2006
F150	15000 kg/day	71205 kCal	-23°C	0.75 kW	0.4 kW	60HP	3200 kg	3350×1750×2260
F200	20000 kg/day	94940 kCal	-23°C	1.1 kW	0.4 kW	75HP	5200 kg	3500×2100×2954
F250	25000 kg/day	118675 kCal	-24°C	1.1 kW	0.75 kW	100HP	7000 kg	4500×2050×3137
F300	30000 kg/day	142410 kCal	-25°C	1.1 kW	0.75 kW	120HP	7500 kg	4500×2050×3277
F350	35000 kg/day	166145 kCal	-25°C	1.5 kW	0.75 kW	150HP	9600 kg	5200×2360×3331
F400	40000 kg/day	189880 kCal	-25°C	1.5 kW	0.75 kW	210HP	11000 kg	5500×2360×3661
F600	60000 kg/day	284820 kCal	-25°C	1.5 kW	0.75 kW	280HP	14000 kg	6400×2360×4307

Why Choose Snowkey Ice Machines

Flake Ice Features:

Flake-Ice formed at -8⁰C
Clean, dry, without acute edges and corners ice formation
Ice thickness of 1.5 ~ 2.2 mm

Flake Ice Machine Features:

Designed on rugged and more durable stationary evaporator technology
Evaporators are designed and tested according to ASME and PED standards
Ice machines with options of Air Cooled, Water Cooled or Evaporative Cooled as required
Ice machines designed according to ambient conditions of end-use location, ensuring rated performance
Ice machines, with our own SRMtec or REFCOMP durable compressors
Ice machines come with PLC-based automatic control panel for complete auto operation and safety control
Unit comes with all electrical, mechanical, and refrigerant safety controls from compressor, evaporator, and refrigeration system

Service & Product Support:

Please check our product service & product support page
